Matrix Onyx Ascent Trainer
Incline elliptical for a smooth, full-body burn
SKU:
ONYX-AT
Incline elliptical for a smooth, full-body burn
GRACEFUL ELEGANCE. UNMATCHED SOPHISTICATION.
Only the Onyx Ascent Trainer elevates exercise into a smooth-moving harmony of natural movement that energizes the senses.
CAPTIVATING PRECISION. A NEW APEX OF LUXURY.

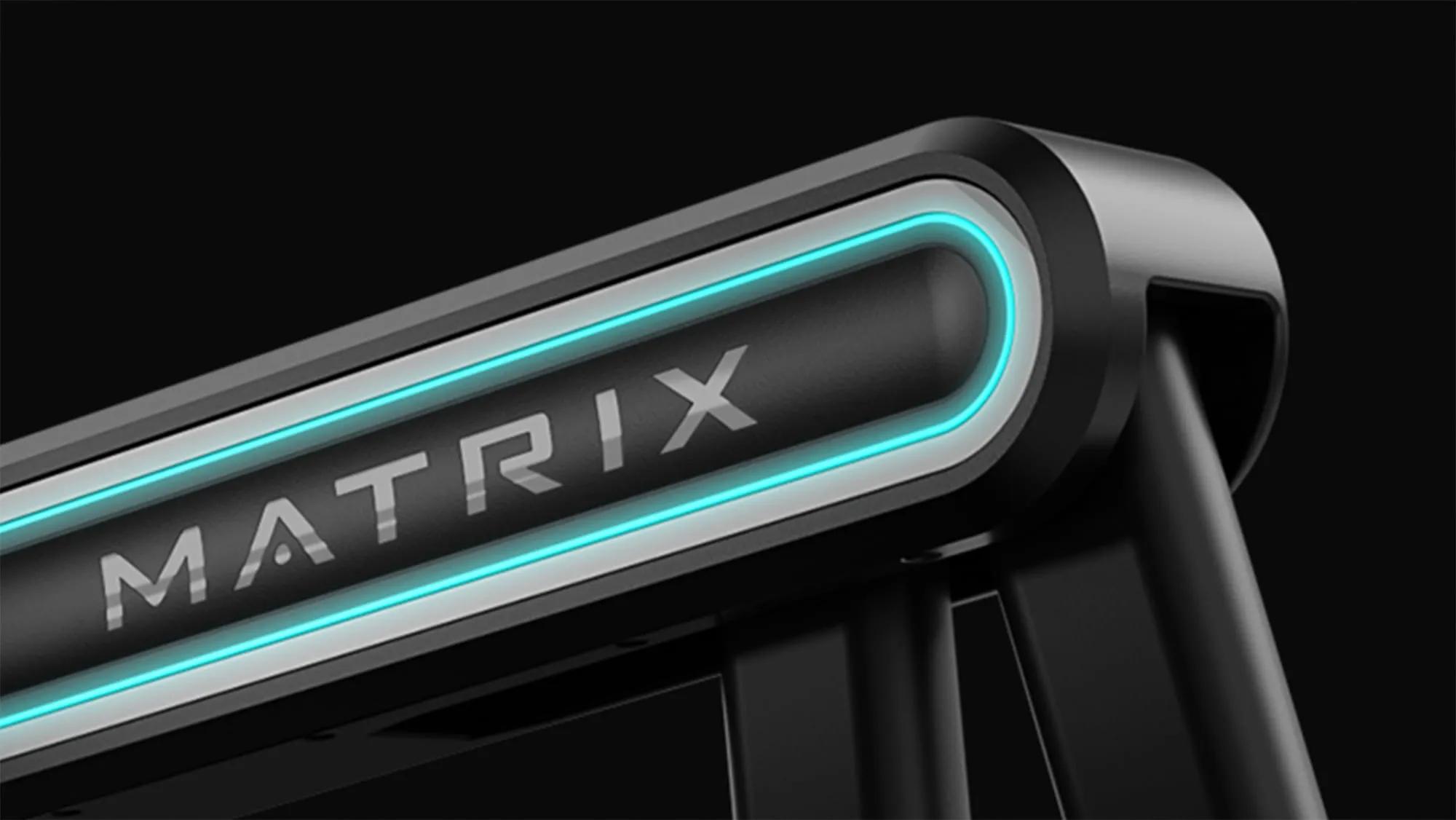

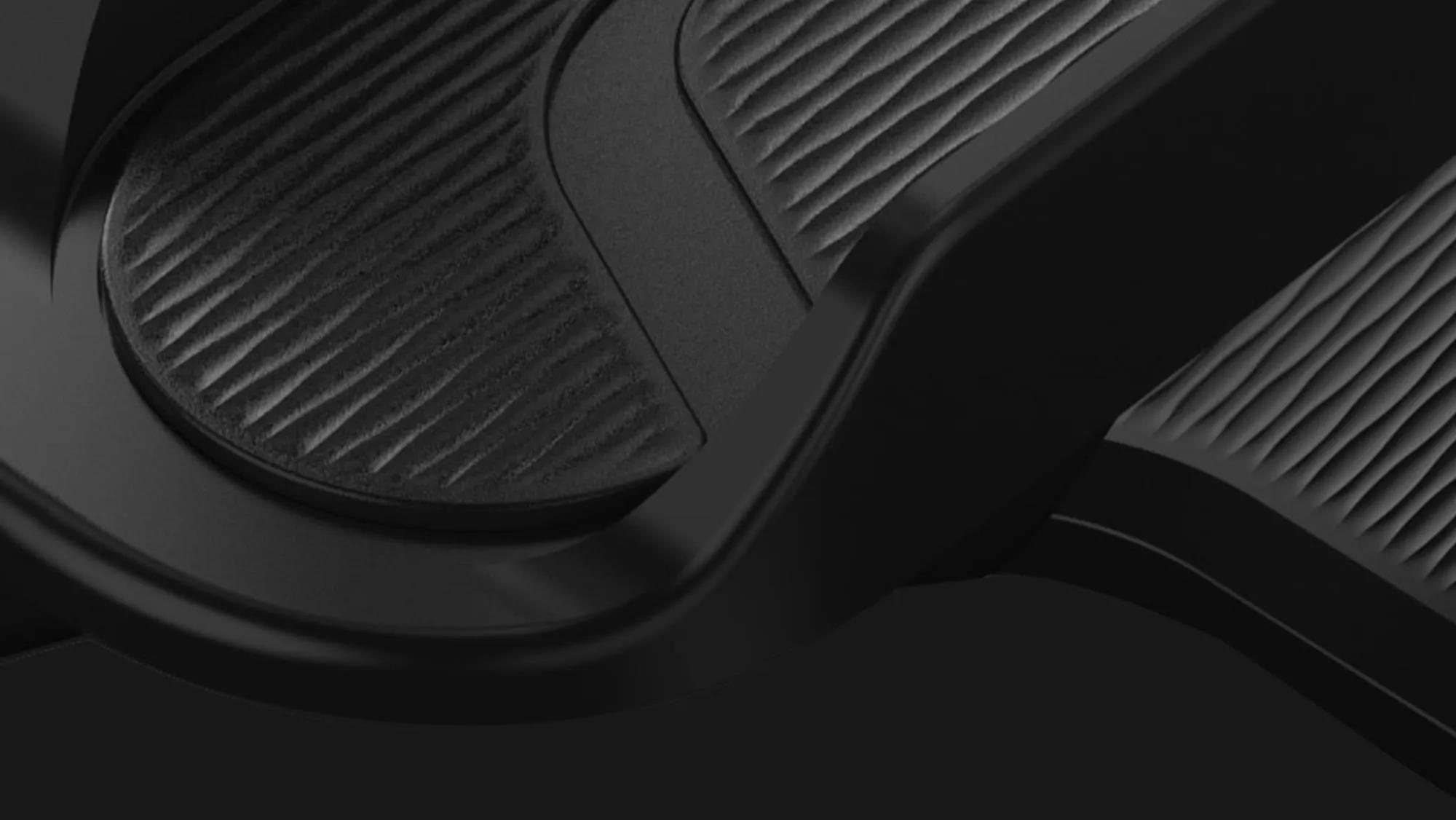

REFINED DETAILS. UNMISTAKEABLE ARTISTRY & CRAFTSMANSHIP.
PURE HARMONIOUS MOVEMENT.
A patented suspension design promises a pure, consistent feel through every ellipse.
IMMERSIVE TECHNOLOGY COMPOSES A SYMPHONY FOR THE SENSES.
Captivating Display
Deliver an engaging exercise experience from beginning to end. Our bright, 22" touchscreen becomes the canvas for resolve and ambition.
Interactive Touch Controls
Haptic feedback from our Interactive Touch Controls redefines the connection between user and technology.
LASTING EXCELLENCE
Experience simplicity of service that seamlessly melds the exceptional and the expected.

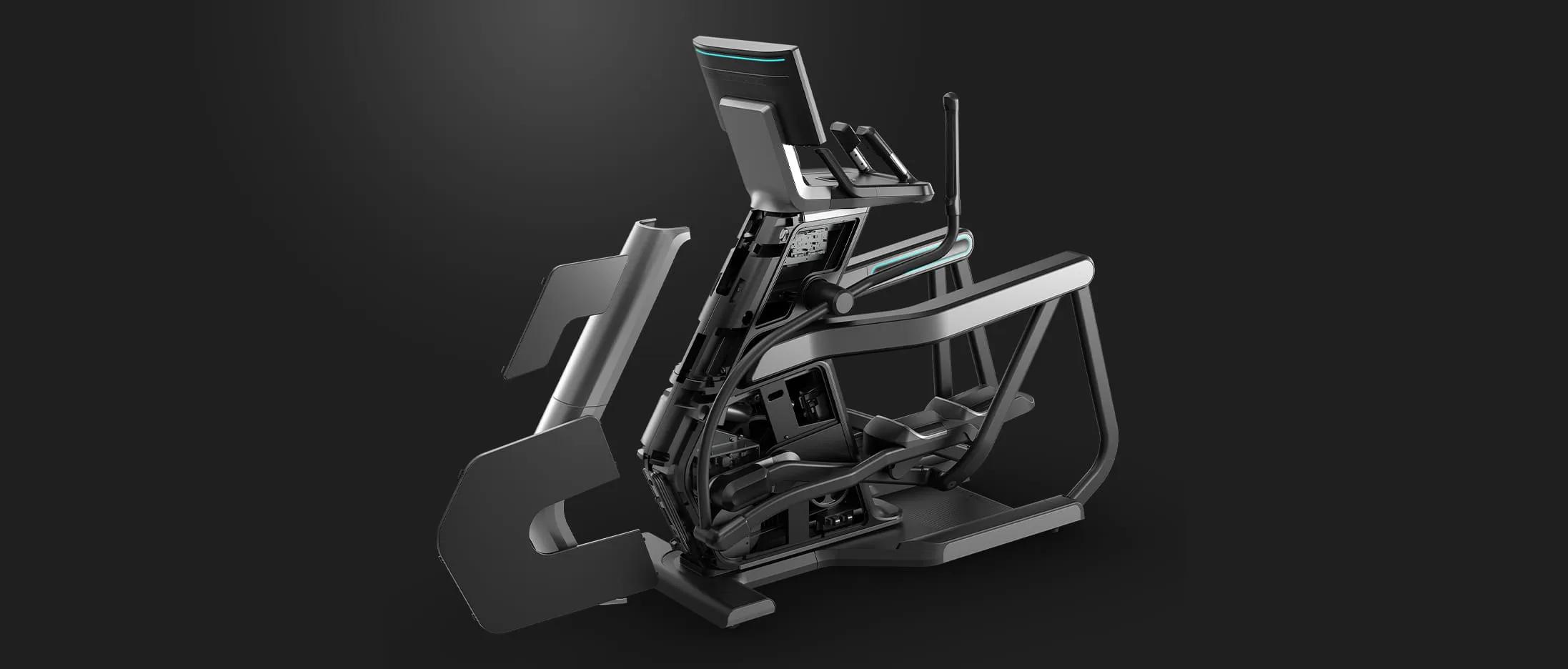

Smarter service panels give you instant access to internal components without any tools.
DISCOVER AN EXPERIENCE FOR THE SENSES
For those who demand the best, Onyx is waiting.
EFFORTLESS OWNERSHIP, UNVEILED
Display
56 cm / 22" class capacitive touchscreen LCD
Programs & Compatibility
Workouts
- Go
- Manual
- Sprint 8
- Virtual Active
- Target heart rate
- Interval training
- Fat burn
- Rolling hills
- Goal training
- Fitness tests
Languages
English, German, French, Italian, Spanish, Dutch, Portuguese, Chinese-S, Chinese-T, Japanese, Korean, Swedish, Finnish, Russian, Arabic, Turkish, Polish, Welsh, Basque, Vietnamese, Somali, Danish, Thai, Malay, Catalan
TV Settings
Analog TV
NTSC, PAL, SECAM
Digital TV
ATSC 1.0, QAM-B, ISDB-T, ISDB-Tb, DVB-C/S/S2/T/T2
IPTV
Content: MPEG2/H262, AVC/H264 / Protocols: UDP, RTSP, HTTP, HTTPS
Pro:Idiom Compatibility
Optional; IPTV and coax
WiFi & Connectivity
WiFi
Yes
Bluetooth
Yes; headphones, heart rate, FTMS
ANT+
Yes; heart rate
RFID Wireless Login
Yes
Made for iPhone, iPad, iPod
Yes; iPhone and iPad only
USB Port
Yes; device charging, device media, software updates
Wireless Charging (Qi)
Yes
Contact & Telemetric HR
Yes
Ethernet Connectivity
Yes
Frame
Assembled Dimensions
186 x 74 x 180 cm / 73.2" x 29.2" x 70.7"
Resistance System
Brushless generator
Minimum Watts
5 W
Minimum RPM
10 RPM
Stride Length
51–61 cm / 20–24" adjustable
Step-on Height
27.4 cm / 10.8"
Pedal Spacing
7.5 cm / 3"
Watt Range
5–650 W
Service Caster
Yes
Top-down Levelers
Yes
Max User Weight
182 kg / 400 lbs.
Power Requirements
100–240 V — 50/60 Hz AC
Assembled Weight
235 kg / 517 lbs.
Shipping Weight
269 kg / 592 lbs.
