Brand: Matrix
Matrix Upper Body Cycle UBCM Ergometer
Upper Body Cycle UBCM
Add a unique, accessible experience to your facility with our UBC-M Upper Body Cycle. An easy-to-use, easy-to-move option, our self-powered Upper Body Cycle features a portable design, easily adjustable manual resistance and a backlit LCD that provides complete workout feedback.
No matter their age or ability level, now everyone can take on progressive, strength-building cardio workouts.
An Inclusive New Spin on Cardio
Smooth, Accessible Exercise
Smooth-moving synchronous, asynchronous and independent rotations let users of all ability levels take part in cardio.
Instant Rotation Adjustments
Crank locks let users quickly adjust the rotation from fixed to free movement to fit their ability levels and goals.
Workout Versatility
Seamless Transitions
Specifications
Console Specs

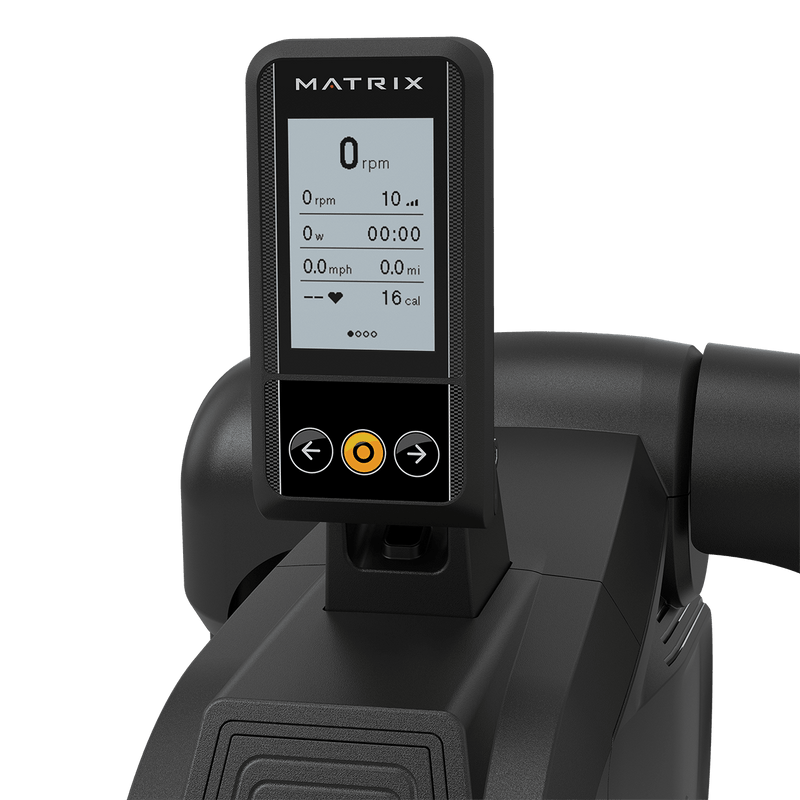

Display
Backlit LCD
WiFi
No
ANT+ / BLE
Yes
Telemetric HR
Yes
Power Requirements
Generator-powered
Workouts
Custom intervals
Asset Management Compatible
No
Training Intensity Guide
No
Frame Specs
Drivetrain
Roller chain and poly V belt
Resistance System
Manual magnetic
Adjustment Type
Quick release lever
Seat Design
Sculpted self-skinning PU seat for durability and comfort
On Product Seat Storage
Yes
Handle Design
Ergo Form™ neutral grip
Crank Design
Forged steel, 17 cm / 6.7"
Leveling Feet
2 front fixed, 2 rear top-down levelers
Transport Handle
Yes
Transport Wheels
Yes: 2
Product Weight
105.1 kg / 231.7 lbs.
Max User Weight
204 kg / 450 lbs.
Overall Dimensions (L x W)
159.6 cm x 78.4 cm / 62.8" x 30.9"
Overall Dimensions (H)
127.5–161.3 cm / 50.1–63.5"
Flywheel
Perimeter weighted cast iron
Water Bottle Holder
Yes
Frame Material
Steel
Shrouds
Drive system and base frame
Q-factor
37.5 cm / 14.7"
